External pointer-based tokens objects

Kohei Watanabe, Stefan Müller, and Kenneth Benoit

Introduction to tokens_xptr in quanteda 4

In quanteda version 4.0, we introduced a new class of tokens object, tokens_xptr. This object enhances the efficiency of adjusting tokens objects based on large text corpora. A sub-class of the tokens object, tokens_xptr is built using on the external-pointer object Rcpp::XPtr. External pointers allow quanteda’s tokens operations to pass references to the object to be modified by the highly optimized C++ routines that perform these operations, without the overhead of passing the objects by value back and forth from C++ to R code.

Prior to version 4, quanteda’s only version of a tokens object has been an R list of integer vectors with each integer mapped to a unique type. With each call of a tokens_*() function, this object is converted to a C++ object, modified in C++, and then passed by value back to R and then recreated into an R tokens object. Such conversion between R and C++ consumes a large part of the execution time of each tokens_*() function call, and this time consumption grows as the size of the tokens object increases.

With the introduction of the tokens_xptr object, this conversion upon passing the object for modification is fundamentally changed, to passing just the reference to the tokens object so that it can be modified by passing a reference (the external pointer) to the object, eliminating the transaction costs of passing the classic tokens object by value. The benefits of this are especially visible when large tokens objects are processed, say those with more than one million tokens, while still benefitting from the sequential steps used in the typical quanteda tokens formatting pipeline, such as creating the tokens, removing some based on a pattern, lower-casing them, forming n-grams, etc. Formerly, with each step this large object was passed by value. With tokens_xptr, successive token processing steps only pass the external pointer, resulting in significant efficiency gains without changing the clear syntax and workflow used in a typical quanteda tokens processing pipeline.

These efficiency gains are only evident for large tokens objects, for instance those with more than one million tokens. The default tokens object format remains the non-external pointer type, but below, we show how to create and work with the tokens_xptr variant. All of the tokens_*() functions work the same for both object classes, so that the user-facing differences are almost unnoticeable between the two object types.

A detailed comparison of performance gains and execution times for tokens versus tokens_xptr objects is available in a separate article.

library("quanteda")

Creating `tokens_xptr`` objects

There are two easy methods of creating a tokens_xptr object.

First, you can create a tokens_xptr from tokens using the as.tokens_xptr() method.

toks <- tokens(data_corpus_inaugural)
print(toks, 0, 0)
## Tokens consisting of 60 documents and 4 docvars.
xtoks <- as.tokens_xptr(toks)
print(xtoks, 0, 0)
## Tokens consisting of 60 documents and 4 docvars (pointer to 0x24d45e89ea8).

Second, this step can be performed by setting xptr = TRUE argument in tokens().

xtoks2 <- tokens(data_corpus_inaugural, xptr = TRUE)
print(xtoks2, 0, 0)
## Tokens consisting of 60 documents and 4 docvars (pointer to 0x24d464325b8).

When xtoks object is printed, the address of its underlying data is shown as (pointer to xxxx). Because two different objects were created above, the addresses displayed for xtoks and xtoks2 are different. We expand on this below, in the discussion of shallow versus deep copies, when binding new object names to existing toks_xptr objects.

Modifying tokens_xptr objects

Shallow copies versus deep copies

When we create a new object by assigning that to an existing tokens_xptr, this creates what is known as a “shallow copy”. A shallow copy is just a copy of the pointer to the memory address where the tokens_xptr version of the tokens objects exists. This contrasts with a “deep copy”, in which the new object takes its data through a physical copy of the data from the old memory location to a new one for the object. Assignment via a deep copy is the how assignment of a a regular tokens object — and indeed most R objects — works.

We can see this in operation here:

toks <- data_corpus_inaugural |>
    corpus_reshape(to = "sentences") |>
    tokens()

xtoks <- as.tokens_xptr(toks)
print(xtoks, 0, 0)
## Tokens consisting of 5,473 documents and 4 docvars (pointer to 0x24d3be4bd98).

# shallow copy
xtoks_copy <- xtoks
print(xtoks_copy, 0, 0)
## Tokens consisting of 5,473 documents and 4 docvars (pointer to 0x24d3be4bd98).

As an external pointer object, the underlying data of the copy of the object xtoks_copy is the same. This means that operations on xtoks using tokens_* functions also affect xtoks_copy even after the copying (shallow copy).

print(xtoks, max_ndoc = 1)
## Tokens consisting of 5,473 documents and 4 docvars (pointer to 0x24d3be4bd98).
## 1789-Washington.1 :
##  [1] "Fellow-Citizens" "of"              "the"             "Senate"
##  [5] "and"             "of"              "the"             "House"
##  [9] "of"              "Representatives" ":"
##
## [ reached max_ndoc ... 5,472 more documents ]

xtoks_copy <- xtoks_copy |>
    tokens_remove(stopwords("en")) |>
    tokens_tolower()

print(xtoks, max_ndoc = 1)
## Tokens consisting of 5,473 documents and 4 docvars (pointer to 0x24d3be4bd98).
## 1789-Washington.1 :
## [1] "fellow-citizens" "senate"          "house"           "representatives"
## [5] ":"
##
## [ reached max_ndoc ... 5,472 more documents ]

This is not the normal R behaviour for modifying objects, but does exist in other packages that use external pointers, for instance, data.table, which has an entire vignette on reference semantics.

If you want to copy the underlying data of a tokens_xptr object (a deep copy), this can be done by re-applying as.tokens_xptr().

# deep copy
print(as.tokens_xptr(xtoks), 0, 0)
## Tokens consisting of 5,473 documents and 4 docvars (pointer to 0x24d445a7ea8).

Each of these has a different memory address from that of the xtoks object above.

Modifying tokens_xptr objects using tokens functions

The functions that modify tokens_xptr objects work in exactly the same way as they do for tokens objects, with the exception that they modify those objects by reference rather than passing copies by value back and forth from R to the underlying C++ code that performs the work.

Not all of the tokens_() functions are implemented this way, because the efficiency gains for some would be negligible. tokens_select(), tokens_compound(), tokens_lookup(), tokens_ngrams() and tokens_replace() will return a shallow copy of the input object for efficiency. However, tokens_subset(), [], tokens_group(), tokens_segment() and tokens_chunk() return a deep copy because they can change the number of the order of the documents. If in any doubt, inspect the attention to the address of the pointer (pointer to xxxx) when using tokens_xptr objects.

print(xtoks, 0, 0)
## Tokens consisting of 5,473 documents and 4 docvars (pointer to 0x24d3be4bd98).

# shallow copy
xtoks2 <- tokens_remove(xtoks, stopwords("en"))
print(xtoks2, 0, 0)
## Tokens consisting of 5,473 documents and 4 docvars (pointer to 0x24d3be4bd98).

# deep copy
xtoks3 <- tokens_subset(xtoks, lengths(toks) > 150)
print(xtoks3, 0, 0)
## Tokens consisting of 11 documents and 4 docvars (pointer to 0x24d453c26d0).

Saving tokens_xptr objects

Because they point to a memory location rather than containing the data itself, a tokens_xptr object needs first needs to be converted to a tokens object before its data can be saved to disk. This is simple and performed by applying the as.tokens() method to the tokens_xptr object. After conversion, it can be saved normally using save() or saveRDS().

# converting to tokens before saving
save(as.tokens(xtoks), file = "~/tmp/xtoks.rda")
saveRDS(as.tokens(xtoks), file = "~/tmp/xtoks.rds")

Creating a document-feature matrix from a tokens_xptr object

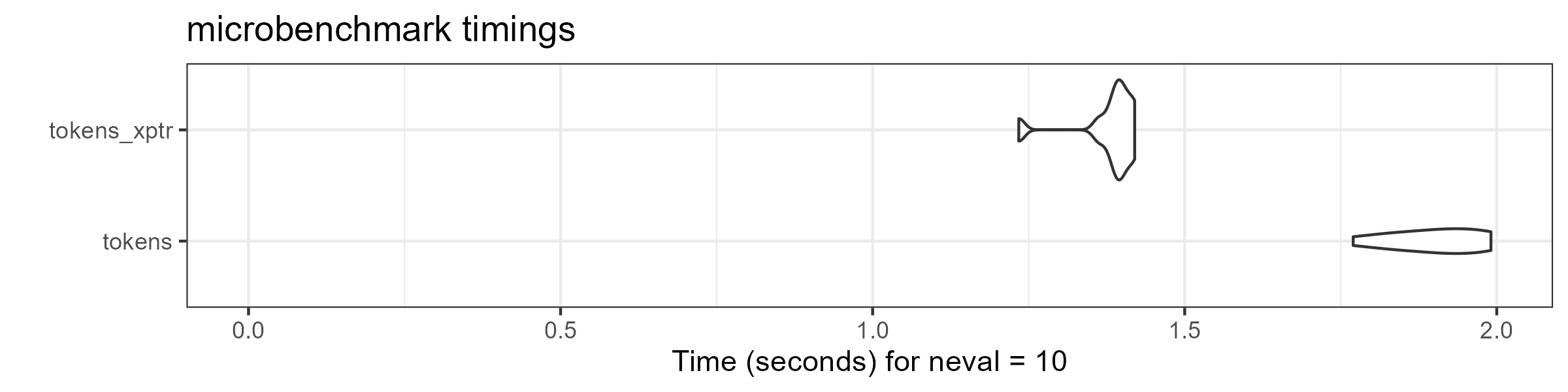

Passing a tokens_xptr object directly to dfm() to compile a document-feature matrix avoids a deep copy of that object and for larger objects can significantly reduce execution times for dfm creation.

We demonstrate this below, using severaltokens_*() functions to tokens and tokens_xptr objects to construct a dfm in this mock pipeline. The execution time for the latter is significantly shorter than for the former, thanks to the cost saved by passing the data without the expensive conversion.

library("ggplot2")
library("microbenchmark")

data_corpus_guardian <- quanteda.corpora::download("data_corpus_guardian")
toks <- data_corpus_guardian |>
    corpus_reshape(to = "sentences") |>
    tokens()

microbenchmark::microbenchmark(
    tokens = toks |>
        tokens_remove(stopwords("en"), padding = TRUE) |>
        tokens_remove(c("http:*", "https:*", "*.com", "*.org", "*.net"), padding = TRUE) |>
        tokens_compound(newsmap::data_dictionary_newsmap_en) |>
        dfm(remove_padding = TRUE),
    tokens_xptr = as.tokens_xptr(toks) |>
        tokens_remove(stopwords("en"), padding = TRUE) |>
        tokens_remove(c("http:*", "https:*", "*.com", "*.org", "*.net"), padding = TRUE) |>
        tokens_compound(newsmap::data_dictionary_newsmap_en) |>
        dfm(remove_padding = TRUE),
    times = 10
) |> autoplot(log = FALSE)
## Warning: `aes_string()` was deprecated in ggplot2 3.0.0.
## ℹ Please use tidy evaluation idioms with `aes()`.
## ℹ See also `vignette("ggplot2-in-packages")` for more information.
## ℹ The deprecated feature was likely used in the microbenchmark package.
##   Please report the issue at
##   <https://github.com/joshuaulrich/microbenchmark/issues/>.
## This warning is displayed once per session.
## Call `lifecycle::last_lifecycle_warnings()` to see where this warning was
## generated.

We explore further benchmarks and comparisons for tokens_xptr usage in a separate article.
